2666 مگاهرتز

سه عدد

11 فاز

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors\r\nSupports Intel 14 nm CPU\r\nSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0\r\nIntel Turbo Boost Max Technology 3.0 support depends on the CPU types\r\nIntel B560 Chipset

چهار عدد

دو عدد

یک عدد

20 مسیر

۰

۰

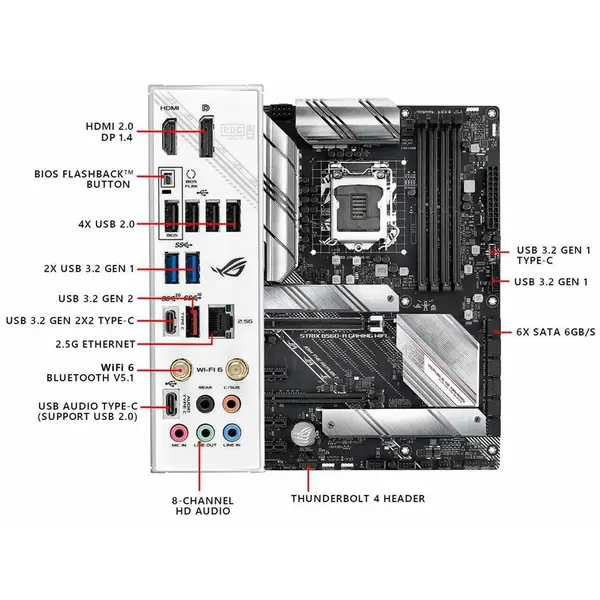

۱ عدد USB 3.2 Gen 2x2 port (1 x USB Type-C)\r\n۱ عدد USB 3.2 Gen 2 port(s) (1 x Type-A)\r\n۲ عدد USB 3.2 Gen 1 port(s) (2 x Type-A)\r\n۴ عدد USB 2.0 port(s) (4 x Type-A) \r\n۱ عدد audio USB Type-C\r\n۱ عدد HDMI port\r\n۱ عدد DisplayPort\r\n۱ عدد ASUS Wi-Fi Module\r\n۱ عدد Realtek 2.5Gb Ethernet\r\n۵ عدد Audio jacks\r\n۱ عدد BIOS FlashBack button

پنل پشتی:\r\n - ۱ عدد USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)\r\n - ۱ عدد USB 3.2 Gen 2 port (1 x Type-A)\r\n - ۲ عدد USB 3.2 Gen 1 port (2 x Type-A)\r\n - ۵ عدد USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C) \r\nاتصالات داخلی: (مجموع: ۷ عدد هدرپورت)\r\n - ۱ عدد USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) \r\n - ۱ عدد USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports\r\n - ۲ عدد USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

۲ عدد M.2 slots (Key M)\r\nIntel 11th Gen Processors\r\nM.2_1 slot (Key M), type 2242/2260/2280/22110 \r\n- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs\r\nIntel B560 Chipset \r\nM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)\r\n۶ عدد SATA 6Gb/s port\r\nWhen M.2_2 runs at SATA mode, SATA6G_1 will be disabled\r\nTo enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology

۱ عدد 4-pin CPU Fan header\r\n۱ عدد 4-pin CPU OPT Fan header\r\n۱ عدد 4-pin AIO Pump header\r\n۳ عدد 4-pin Chassis Fan header\r\n۱ عدد 24pin Main Power connector\r\n۱ عدد 8pin +12V Power connector\r\n۲ عدد M.2 slots (Key M) \r\n۶ عدد SATA 6Gb/s ports\r\n۱ عدد USB 3.2 Gen 1 connector (support(s) USB Type-C)\r\n۱ عدد USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 port\r\n۲ عدد USB 2.0 header(s) support(s) additional 4 USB 2.0 port\r\n۲ عدد AURA Addressable Gen 2 header\r\n۲ عدد AURA RGB header\r\n۱ عدد Clear CMOS header\r\n۱ عدد Front Panel Audio header (AAFP)\r\n۱ عدد SPI TPM header (14-1pin)\r\n۱ عدد 20-5 pin System Panel header\r\n۱ عدد Thunderbolt header\r\n۱ عدد S/PDIF Out header\r\n\r\n\r\n

Ethernet\r\n - ۱ عدد Realtek 2.5Gb Ethernet\r\n - ۱ عدد ASUS LANGuard\r\n - ۱ عدد Wireless & Bluetooth\r\nIntel Wi-Fi 6\r\n2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) \r\n - ۲ عدد Supports 2.4/5GHz frequency band\r\nBluetooth v5.0 or later

Audio Features \r\n- SupremeFX Shielding Technology\r\n- Savitech SV3H712 AMP\r\n- Rear audio USB Type-C port\r\n- Premium Japanese audio capacitors\r\n- Audio cover\r\nDue to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio

Dual Channel Memory Architecture\r\nSupports Intel Extreme Memory Profile (XMP)\r\nOptiMem II\r\n10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz\r\n11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively\r\nMemory QVL (Qualified Vendors Lists)

1 عدد BIOS FlashBack

128Mb Flash ROM, UEFI AMI BIOS

۱ عدد DisplayPort 1.4\r\n۱ عدد HDMI 1.4 / 2.0\r\nGraphics specifications may vary between CPU types \r\nOnly Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update\r\nOnly Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates

۱ مسیر PCIe 4.0/3.0 x16 slot(s)\r\n۱ مسیر PCIe 3.0 x16 slot (supports x4 mode)\r\n۳ مسیر PCIe 3.0 x1 slots

Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.0

Realtek

شش عدد

کانکتور برق اصلی 24 پبن ATX

6 عدد

WOL by PME, PXE

PCI-E 3.0 x4

۱ مسیر PCIe 4.0/3.0 x16 slot(s)\r\n۱ مسیر PCIe 3.0 x16 slot (supports x4 mode)\r\n

Intel LGA 1200
