DTMF Methods In Audio, RFC2833, and SIP INFO

QoS Layer 3 QoS, Layer 2 QoS

Voice and Fax Codecs G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38

Dimensions 440mm(L) x 185mm(W) x 44mm(H)

Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261),

Network Interfaces Dual Gigabit ports (switched or routed) with PoE+ Peripheral Ports USB, SD /Reset Switch Yes, long press for factory reset and short press for reboot

PSTN Line FXO Ports 2 RJ11 ports (both with lifeline capability in case of power outage)

Analog Telephone FXS Ports 2 RJ11 ports (both with lifeline capability in case of power outage)

LCD Display 128×32 dot matrix graphic LCD with DOWN and OK buttons

Environmental Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing) Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing)

گرنداستریم-Grandstream

The UCM6510 IP PBX appliance is designed to bring leading edge voice, video, data, and mobility features to enterprises, small and medium businesses, retail and residential environments in an easy-to-manage fashion. This enterprise-grade on premise IP PBX supports E1, T1 and J1 networks and offers scalability by supporting up to 2000 users. The UCM6510 sports a 1GHz quad-core Cortex A9 processor, 1GB RAM and 32GB flash. This secure and reliable IP PBX delivers unified communication features at an unprecedented price point without any licensing fees, costs-per-feature, or recurring fees.

+Video Codecs H.264, H.263, H263

TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk

Mounting Rack mount & Desktop

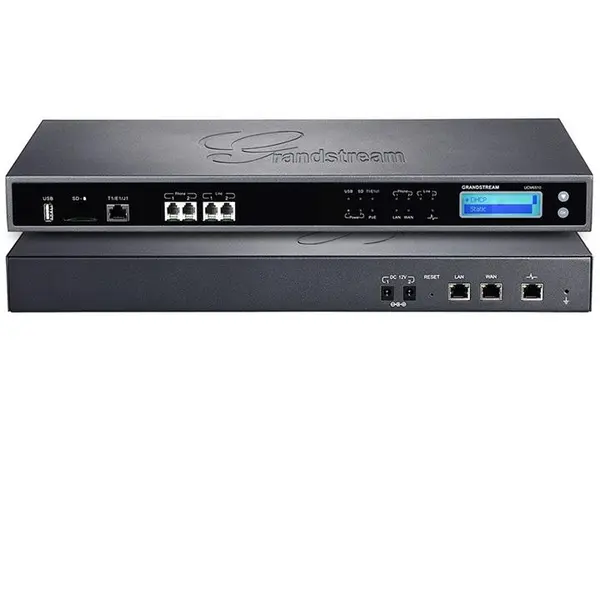

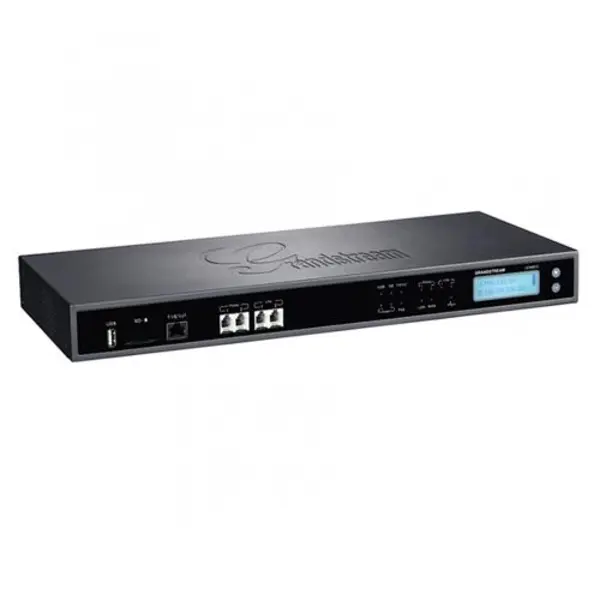

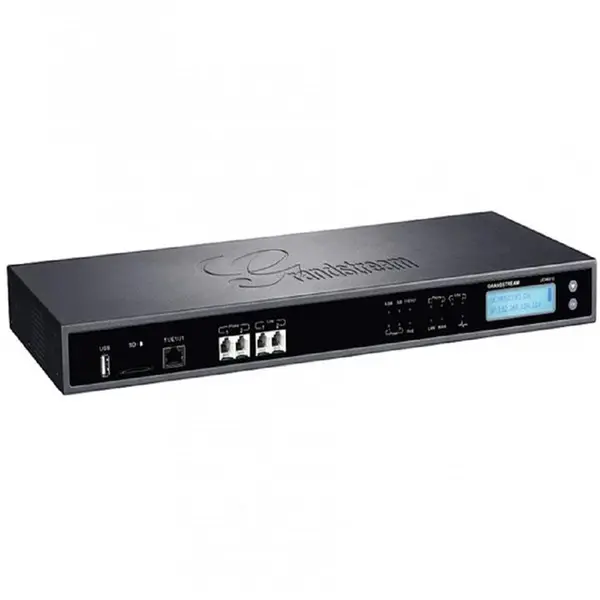

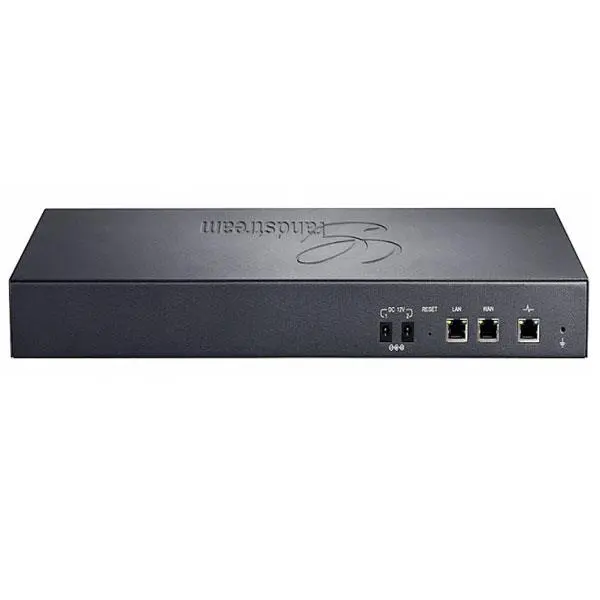

Grandstream UCM6510 IP-PBX
