DTMF Method In-audio, RFC2833 and/or SIP INFO

QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Dimension and Weight Dimensions: 100mm x 100mm x 29.5mm Weight: 102 g

Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069

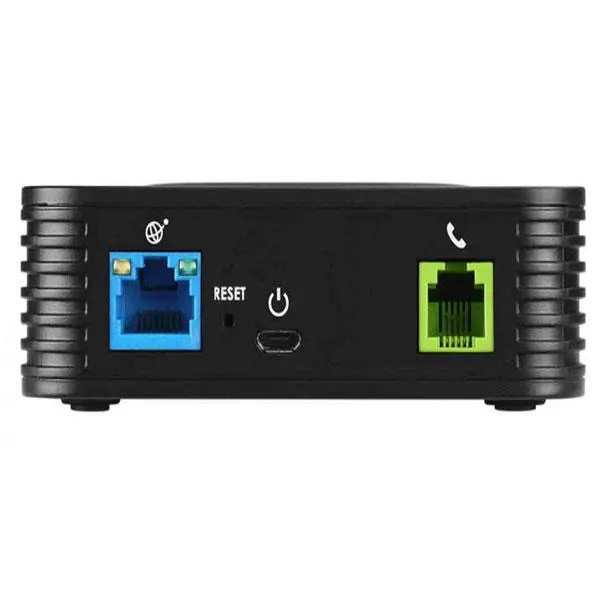

Telephone Interfaces One (1) FXS port / Network Interfaces One (1) 10/100Mbps auto-sensing ethernet port (RJ45) /Factory Reset Button Yes

One (1) FXS port

LED Indicators POWER, INTERNET, PHONE

Operational: 32º – 104ºF or 0º – 40ºC Storage: 14º – 140ºF or -10º – 60ºC Humidity: 10 – 90% Non-condensing

Media SRTP /Control TLS/SIPS/HTTPS /Management Syslog support, SSH, remote management using web browser

Telephone Interfaces One (1) FXS port

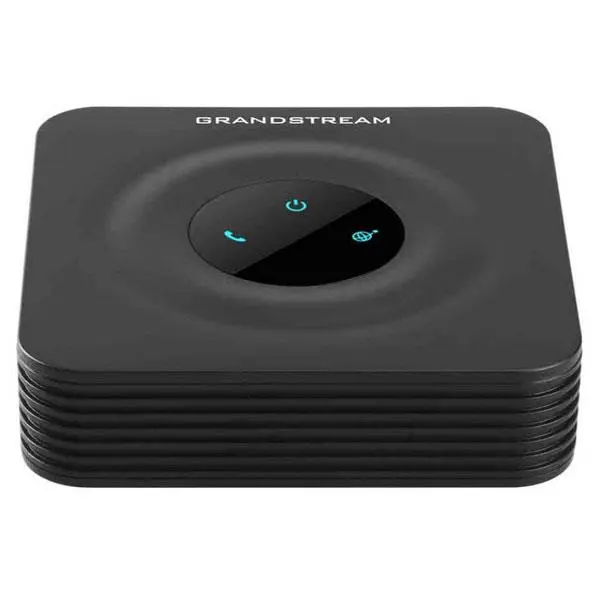

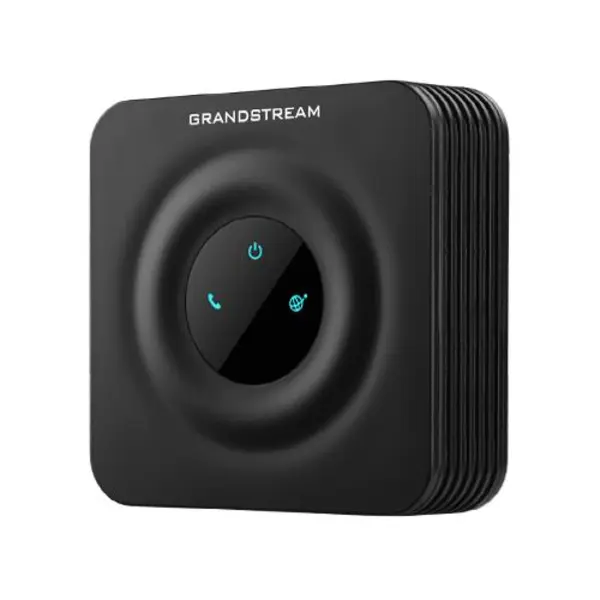

The HT801 is a single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones. It also allows service providers to offer high quality IP service to their market. The HT801 is an ideal ATA for individual use as well as commercial IP voice deployments worldwide

Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, / OPUS, dynamic jitter buffer, advanced line echo cancellation /Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax

FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, S003 K.21

Provisioning and Control HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog

Universal Power Supply Input: 100-240VAC, 50-60Hz
