Parental Control Network Address Translation(NAT) Port Mapping (Grouping) Static Routing RIP v1/v2(optional) DNS Relay DDNS IGMP V1/V2/V3

TR069 Internet IPTV

MAC Filtering IP/Port Filtering URL Blocking DOS

LAN IP Setting Backup

10% ~ 90% （Non-condensing）

0℃~40℃ (32℉ ~104℉)

DDNS IGMP Multicast VLAN 802.1Q Routing

ATM QoS Bandwidth Control

5% ~ 90% (Non-condensing)

ACS, Connection request

Enable/Disable Wireless Radio

2 * 5 dBi Antenna

PPPoE Dynamic IP Static IP Bridge

116*90.5*24mm(W * D * H)

G.994 compliant ITU-T G.992.1 (G.dmt) ITU-T G.992.2 (G.lite) ITU-T G.992.3 (G.dmt.bis) Annex A/L/M ITU-T G.992.5 Annex A

Supports IPv4 and IPv6

PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) MER\IPoE (RFC 1483 Routed)

DHCP Dynamic DNS IGMP Proxy UPnP

WPS/WLAN Button Power On/Off Button Reset Button

-40°c ~ 70°c

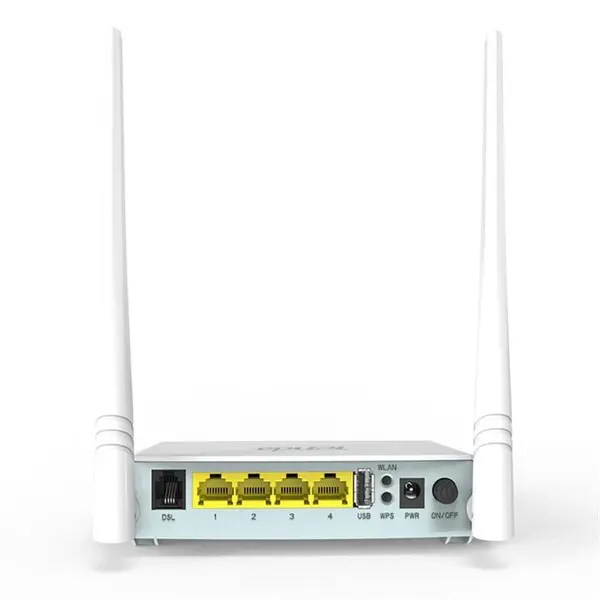

3*10/100 RJ45 LAN Ports 1*10/100 RJ45 WAN/LAN Port 1*RJ11 Port 1*Power Jack

11n 300M

Server Client DHCP Client List Address Reservation

<20 dBm(EIRP)

CE、RoHS

CH1-CH13

Input: 100 – 240V 50/60Hz Output: 9V 600mA
