DHCP Client, DHCP Relay, DHCP Server, DHCP Snooping, DHCP Snooping Option82, DHCP Security, ARP

IGMP Groups and Multicast Routes, IGMP v1/v2/v3, IGMP Snooping v1/v2/v3, IGMP-Snooping proxy

Port mirroring / Layer 2 Remote Port Mirroring / Flow mirroring

ACL (supports VLAN、CoS、DSCP、IP Pre、MAC、L2 Type、Protocol、TCP-Flag), CAR, Inbound Rate Limiting, Outbound Shaping, Congestion Avoidance, Port Queue, Queue scheduling

پروتکلهای STP (802.1d) / RSTP (802.1w) / MSTP (802.1s)

4094 عدد

44*310*442 میلی‌متر

802.1X Authentication, MAC Authentication, PORTAL Authentication, PPPOE+, DHCPv6 Snooping, ND Snooping, AAA, RADIUS, HWTACACS, MFF(MAC Forced Forwarding)

28 عدد

RMON(Group 1/2/3/9), SNMP(v1/v2/v3), WEB Management, HTTP server, HTTP client, HTTPS(HTTP over SSL), Telnet, FTP, TFTP, SSH, Autoconfig, 802.3az

8000 عدد

QinQ, MUX VLAN (Private VLAN), VOICE VLAN, GVRP (GARP VLAN Registration Protocol), LACP (Link Aggregation Control Protocol, ETH-TRUNK), E-Trunk (Link Aggregation between devices), Smartlink, Monitor Link, RRPP (Rapid Ring Protection Protocol), SEP (Smart Ethernet Protection), Routing protocols (RIP/OSPF/RIPng/OSPFV3/Static), PBR, VRRP, MLD Snooping, Muticast VLAN, PIM-DM, PIM-SM, PIM-SSM, iStack, SVF Client, VCT （Virtual Cable Test）, DLDP (Device Link Detection Protocol), LLDP, LLDP-MED, 802.1ag, Y.1731, 802.3ah, ERPS (G.8032), NQA (Network Qulity Analysis), Loopback Detection, 802.3af （15.4W）, 802.3at （30W）

10/100/1000 مگابیت در ثانیه

336 گیگابیت در ثانیه

پشتیبانی از پارامترهای VLAN、CoS、DSCP、IP Precedence、MAC、L2 Type、Protocol、TCP-Flag

CE, ROHS, REACH, CB, UL, FCC-VERI, WEEE, Miercom

370وات داخلی

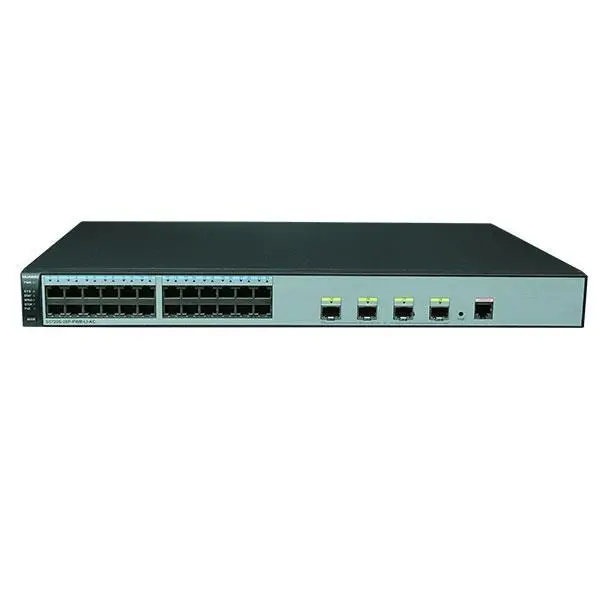

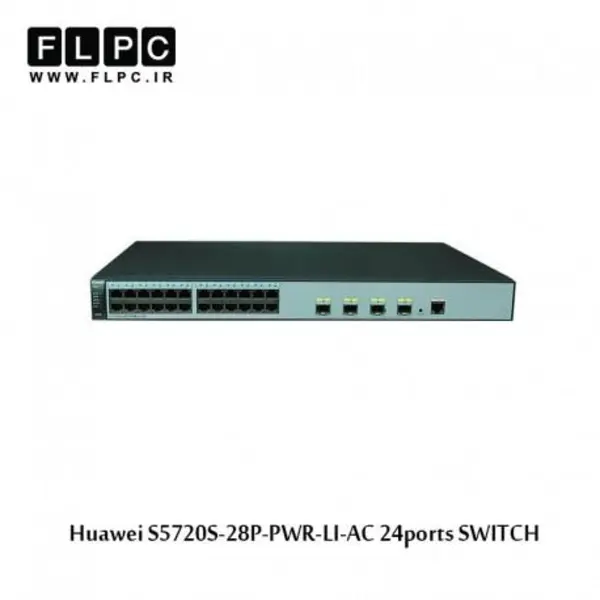

24 Ethernet 10/100/1000 ports, 4 Gig SFP, PoE+

10/100/1000Mbp/s

4500 گرم

24 پورت 10/100/1000 با قابلیت +PoE
